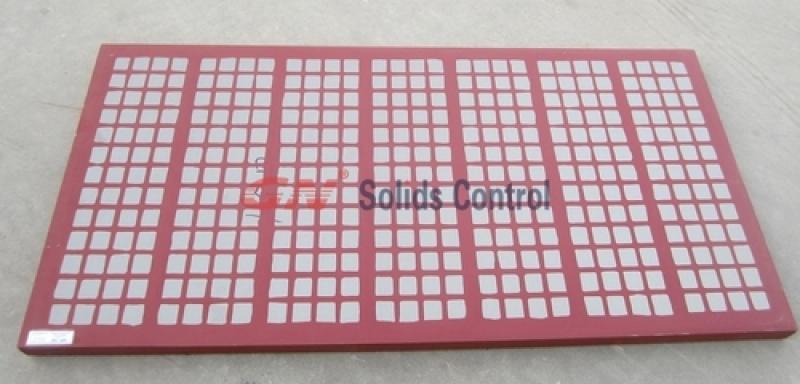

A vacuum manifold is attaching to shaker screen of vacuum shaker screen recovery system. Or it installs a vacuum manifolds which have a shaler screen attached to it.

The vacuum system attached to the shaker’s  basket, so the manifolds vibrates with the shaker while shaker running.

There is a vacuum line with a fluid/air separato attached to vacuum manifolds. The vacuum manifolds is connected to collection tank. The vacuum unit is installed as close as possible to the shaker to keep the distance that the recovered fluid is transported as short as possible.

Vacuum shaker screen recovery system is a new techology for drilling mud recovery.

Main problem about fluid loss recovery with tradtional solids control management is ultrafines. Vacuum shaker screen recovery system will not generate fines. It solves this problem.

Vacuum shaker screen recovery system can treat any kinds of mud, WBM, and OBM. And it can be usesd for any kinds of shaker model.

Trailer Mounted mud system is polular in horizontal directional drilling (HDD),because some of the HDD projects are operating close to the downtown of the cities.

The advantage for the trailer mounted mud tank system is that it can be very fast transport from jobsite to jobsite.Which helps the drilling company to save time and cost in moving the equipments.

GN Solids Control also can provide skid mounted and hydraulic jack up mud cleaning unit.

Solidsclarifcation Unit is used for water based mud cutting treatment.The function is similar like the Vertical Cutting Dryer or HI-G vertical Cutting Dryer which used for drying the solids from oil based drilling mud cuttings.

Solidsclarification Unit drying the cuttings into water and tranportalble cake of drilling cutting for further treatment.

For more info. about the solids clarification unit and drilling waste management equipment,please go to GN Solids Control website.

High G dryer (high G dryer) and vertical cutting dryer (vatex dryer) are the main equipmetn of waste management system.

Many clients cannot well tell the difference of them.

From function:

High G dryer (high G dryer) is mainly used for water base drilling cuttings. Like GNZS853 high G shaker.

Vertical cutting dryer (vatex dryer) is mainly used for oil base mud. With water base cutting, cannot work well.

Regarding cost, vertical cutting dryer is a relative expensive equipment compared with high G shaker.

Users can shoose right equipment according to his own mud condition.
