Right now, a national Oil Show is beingheld in Sichuan Province, China. Many companies, both from domestic China andabroad, are attending the Oil Show. For this Oil Show, GN Solids Control showed
the newly designed drilling waste management system GNDC-40B.

Sichuan Province is located in south east
of China, in which there are several drilling rig suppliers and oil field
service companies. Some international oil companies also have branch or jobsite
there. Just last year, this same system which GN are showing for the oil show
was chosen by a jobsite of SHELL, in Sichuan Province.

This system is combined by following
equipments:

1.
GNLW363 Decanter Centrifuge.
this centrifuge is a 14 inch bowl decanter centrifuge.
for the same model, GN has developed to the 3^rd generation, with
lots of improvements. Each year, GN sells 150 sets of centrifuges, 70% of which
are this model. This centrifuge could provide various applications for oil and
gas drilling projects, like solids control decanter centrifuge, waste
management decanter centrifuge and dewatering centrifuge. For the same model,
GN has fixed speed one and vfd control panel one for option, for fixed speed
one, GN could provide 3 optional belt and pulley for the end user to use it in
different conditions, and for VFD controlled one, more optional speed could be
reached by means of the 3 VFD controlled models for main motor, back motor and
feeding pump.

2.
Vertical cuttings dryers, this
is the former step separation equipment for decanter centrifuge. Since GN
designed the first vertical cuttings dryer in China, GNCD series vertical cuttings dryer has
been to the 3^rd generation. This newly improved model GNCD930C is
proved to suit for not only OBM and SBM as traditional vertical cuttings
dryers, but also suitable for WBM. For the Vertical Cuttings dryer, GN also
have fixed speeded and VFD controlled available.

If you miss the Sichuan Oil Show but still
like to see GN products, you could arrange your schedule to Beijing Oil Show,
the biggest Oil Show CIPPE. In CIPPE, GN will have a larger booth and show
more equipments and systems.

GN Booth number : E1-E360.

Time: March 26^th – 28^th.

.

Related Arciels:

• Solids Control Mud Mixing System & Pipelines
• Celebration for Partnership between EMEC and GN Solids Control
• Diamond Drilling equipment in Canada

• Barite recovery centrifuge system available in Houston warehouse
• GN Vertical Cutting Dryer for Oil-Based Mud Drilling Waste

Solids control system play a very important role in oil and gas drilling. It cleans the
drilling mud which includes many wasted cuttings, and recollects the mud for
recycling usage. Drilling cutting discharged from the solids control equipment is
always also wet with oil or water content. If disposed directly to the ground,
the wet drilling cuttings will contaminate the environment seriously. With more
and more strict regulations on Waste Discharge, it is now allowed to directly
pour the wet drilling cutting on the ground, and the liquid content is requited
to below OOC 5%, then can be discharge.

GN vertical
cutting dryer provides the proper solution to
solve this problem. Solids discharged from shale shaker and desander, desilter
or the mud cleaner will be directly delivered to the vertical cutting dryer
instead of being disposed through screw conveyor. The vertical cutting dryer
will throw the liquid out in high centrifuge force; solids will be preventing
form throwing out by a stainless steel screen. Thus solids and liquids are
separated. Solids will fall into a collecting box from the bottom opening;
liquid will flow into a mud tank from which it will be pumped into a high speed
decanter centrifuge for further treatment.

GN vertical cutting dryer now is working
for a Shell project in Sichuan, China. Also, one set of GN vertical cutting
dryer is used in Europe. Also, 4 sets are for Baker Hughes project in Russian.
With more and more strict environmental regulations, drilling waste must be
treated if wanted to be disposed. Besides fixed speed vertical cutting dryer,
GN also provides VFD control for option. It control the rotating speed of
vertical cutting dryer, and also the flushing pump which is used to flush the
liquid to ensure the liquid flow smoothly.

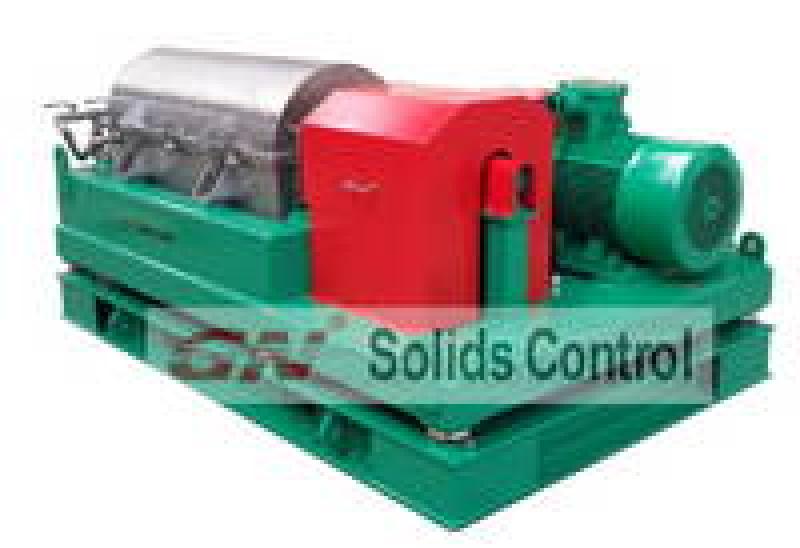

Being an expert of solids control equipment and drilling waste management equipment, Hebei GN Solids Control Co., Ltd is focused on designing, manufacturing and selling decanter centrifuge. Decanter centrifuge not just can be used as solids control equipment serving as the final stage to split up particle which having a diameter under 10 microns, more specific, two to five microns, but additionally can be used to purify mud released from vertical cutting dryer inside a drilling waste management system.

 GN Solids Control presently has a set of NEW decanter centrifuge GNLW454G on purchase with 30% discount. Just only one is on discount, and that one has been produced and examined, and today inside a ready station for delivery to around the globe. The primary parameters of the new decanter centrifuge shows up blow.

 It features a bowl size 18inches (450mm) having a draw ratio about 3.7 to at least one, it bowls length being 67 inches (1720mm). The bowl speed is 2200 Revolutions per minute or 2500 Revolutions per minute based on different pulley, creating an optimum G pressure 1573G.Treating capacity of the new decanter centrifuge is 60 cubic meters each hour. And also the primary motor is 45kw; the rear drive motor is 15kw.

 Why GN makes this type of discount for this new decanter centrifuge? The essential reason is the fact that GN has stopped producing GNLW454G decanter centrifuge, and changed it with GNLW454-VFD series decanter centrifuge, which have a similar bowl diameter, but have shorter bowl length and speed, plus they creates a high G pressure. While there no necessity to doubt the post sales service when you purchased it, since the core technology is identical. And also the putting on spares will also be same, so that you can still purchase add-on spares part from GN solids control.  Just one is on sales, be quick!

Related Arciels:

• GN Mini Decanter Centrifuge
• Obtain Your Solids Control Equipment Choose GN Solids America
• The knowledge about mud cleaner
• Dewatering system for water based mud
• Drilling cuttings decanter centrifuge at the jobsite

500bbls tanks is a common size mud tank for oil and gas drilling rigs. I can be used for mud mixing or mud storage. For HDD or CBM drilling, they normally do not use such big size mud tank.

Below is the parameters of GN design 500bbl mud storage tank, it is rectangular Mud Tank built as per API specification Schedule 40:

Mud tank usable capacity: 500 bbls approx.

Compartment quantity: the 500bbls mud tank can be divided into 1~3 compartments (Depends on customer request.). Capacity of each compartment: 250 bbls approx.

Mud tank dimension W x H x L: 13500×3000 x2650mm Or customized dimension.

Electrical mud agitator model GNJBQ150-DD, with 36" impeller, 2-layer impeller. 20 HP driving motor, 460V – 60 HZ, RPM 1750 or 380V – 50 HZ, RPM 1450.

Electrical mud agitator quantity – 2~4 each, with 2~4 each mud gun

Sufficient agitation to mix up 17 ppg mud. Bottom mud guns installed quantity – 4 each. Bottom mud guns installed size 2 in, model GNNJQ50A-3G, 3-nozzle mud gun.

6" suction and 4" discharge line on either end of the tank with female cam lock connection to other tanks.  4" drain line with butterfly valve – 2, 8" Equalizing valve between compartments- qty 2~3. Depends on compartment quantity.

Cover with Grating top, collapsible hand rails surrounding, dual access- escape ladder

Skid: It is skid Mounted 3 runner oilfield skid mud tank with V crimp walls, it is easy for oilfield movement.

Other advantages of 500bbl mud storage tank for oil and gas drilling

1. Sand Blast Treatment before painting.

2. External paint and internal coating

3. Bottom painting for anticorrosive: Two pack Epoxy zinc, thickness 75 μ

4. Middle painting: Two Pack Epoxy hi-build containing anticorrosive pigmentstwice, thickness 250 μ

5. Surface painting: Surface pigmented with high quality light fast PU pigments, thickness 70 μ

6. Standard: API&ISO Certified Manufacturer

GN Solids Control and GN Solids America will come and attend 2015 OTC in Houston. OTC, full name is Offshore Technology Conference, is said to be the largest Exhibition in petroleum field in the world. The second one is CIPPE in Beijing. Every year, there will be around 3000 companies from 40 countries attending the show.

In 2015 OTC, GN will take its latest design drilling waste management equipment. And drilling waste management is the main and most advantaged products of GN Solids Control (China) and GN Solids America (U.S.A).

GN 2015 OTC exhibition information

OTC location: Reliant Park Houston, TX, USA

Exhibition time: May 04-07, 2015

GN Solids Control (China): Reliant Arena, 290 SF, booth No.: Pending

GN Solids America (USA): Reliant Arena, 200 SF, booth No.: 6137

GN will show complete line drilling waste management equipment for the show. It includes but not limited to below list:

1) 14 inch high speed decanter centrifuge GNLW363C-VFD, variable speed control

It is the most normal size decanter centrifuge used for both solids control system and drilling waste management system with its reliable performance and cost-effective price.

2) Big bowl big capacity decanter centrifuge GNLW553-VFD, variable speed control, 22 inch big bowl size

As more and more customers prefer solids control systems only with shale shaker, it request s high standard of solids control decanter centrifuge. GNLW553-VFD is an ideal model to used together with solids control shale shaker.

Furthermore, GNLW553-VFD big bowl centrifuge is also widely used for drilling waste management system.

3) Drilling waste vertical cuttings dryer

GN patent design vertical cuttings dryer can be used to treat OBM, SBM as well as WBM. Customer can use the same system to treat most kind of mud.

All above equipment, GN has stock available in Houston, U.S.A. GN Solids America is a separated brand registered in Houston TX in year 2013. It is the first U.S.A based Solids Control manufacturer from China. GN Solids America offers sales service and rental service in America. You can contact GN Solids America for more information.
