The function and principle of Oil water filter

Oil water filter, it is mainly used to treat the contaminated oil, such as cooling system oil in drilling waste vertical cuttings dryer. Its function is filtration, purification, recovery or enhance the attributes of oil itself. The treatment process is including oil cleanliness, moisture content, gas content, acid value, viscosity, flash point, the insulation strength, color and so on. Oil water filter can effectively remove impurities in oil to guarantee safe operation of the equipment.

Application scope of Oil water filter

Oil water filter is mainly used in mining industry, metallurgy, petroleum field (drilling mud cleaning system), railway, machinery, chemical, textile, cement, power, instrumentation and other industries. It has big effect on the purification and recovery of variety of industry waste lubrication oil. Oil water filter can extend extend the maintenance cycle and service life of equipment, and reduce the production cost.

Furthermore, oil water filter can effectively remove oil pollutants such as: water, water soluble acid, alkali and mechanical impurities, improve the kinematic viscosity, flash point of oil, emulsification. To make oil quickly returned to the desired properties, close to or reach the national standard of the corresponding new oil.

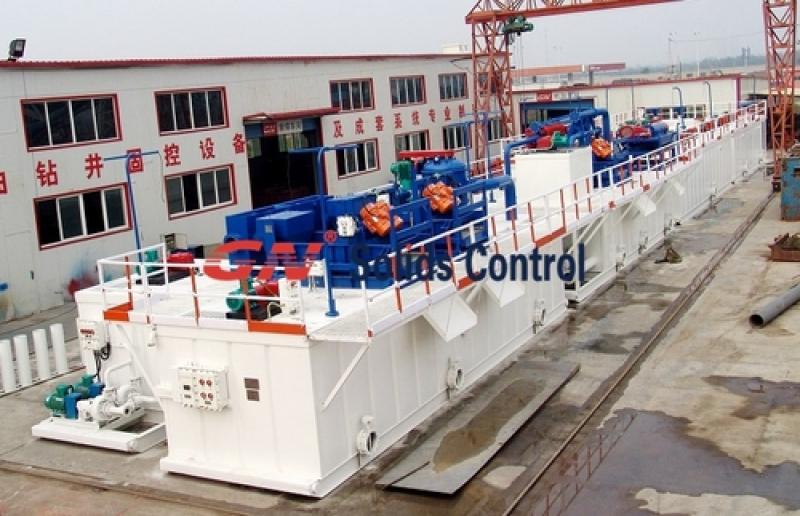

Oil water filter for liquid mud plant base oil tank

Oil base mud is a normal kind of drilling mud for deeper oil and gas drilling. Diesel oil is used as base oil. Oil water filter is used before based oil tank, after treatment, the oil will be transferred to base oil tank through oil pump.

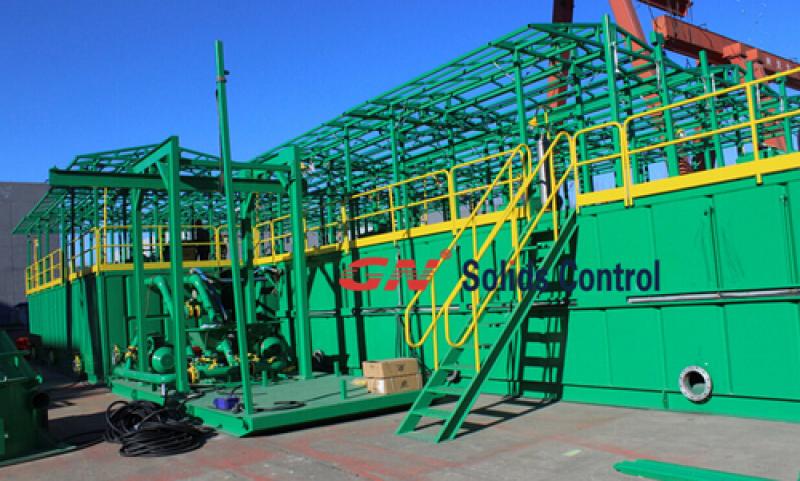

Beside oil water filter, there are other equipment are necessary for liquid mud plant

1) Mud agitator: it is equipped in each tank compartment to enable the mud moveable all the time, to avoid it from settle down.

2) Mud mixing system: for continue mud prepare

3) Huge capacity mud tanks

4) Electrical control system and lighting system for the whole system

5) Rain shade to protect the whole system from strong sunshine or rain.

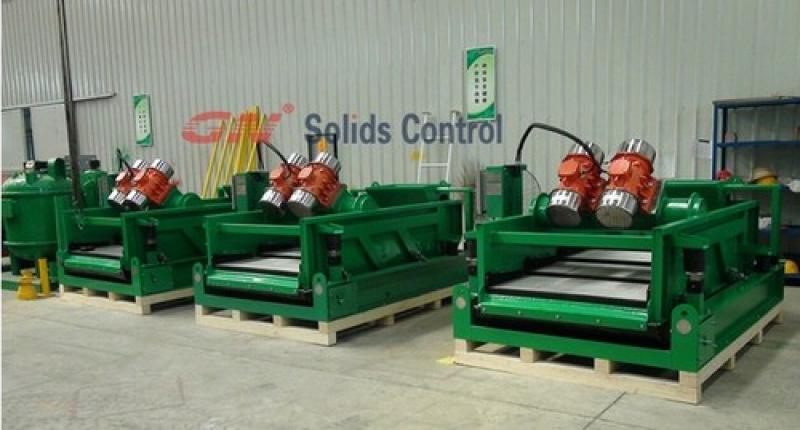

Shale shaker is the first stage solids control equipment in drilling rig mud system. It is the necessary equipment for mud solids control. According to the motion type generated by vibrating motor, there are linear motion shale shaker and balanced elliptical motion shale shaker. While linear motion shale shaker is more widely used as it can suits a wider range application and it is workable even with big handling capacity.

Rubber sealing for linear motion shale shaker in drilling mud system

Rubber sealing is an essential part for shale shaker performance. It is the rubber used between shale shaker deck and shale shaker screen.

1) The rubber can seal the shaker deck and shaker screen better. It can prevent the shale shaker leakage.

2) The rubber sealing can extend shaker screen lifetime and protection shaker deck from worn out. The shaker deck and shaker screen frame are both made from metal. If there is no rubber between them, the metal touched each other directly and vibrating under high G force. It will generate big noise and the screen and shaker deck will be damaged soon.

Other features affect linear motion shale shaker lifetime and performance

Besides rubber sealing, there are other features that will affect the shale shaker lifetime. It includes but not limited to following:

1) The materials of shaker deck. Stainless steel can surely stand longer than carbon steel

2) Suitable shaker deck angle can enable the mud move forward shaker deck more fluently and get a longer lifetime of the shaker screen.

3) Suitable G force. If the G force is too small. The mud cannot separate well and then overflowed. It is a waste. If the G force too big, one side, it may damage the drill mud contend, another side, big G force will shorten shaker screen lifetime.

4) Reliable brand vibrating motor and strong enough design for shaker wall

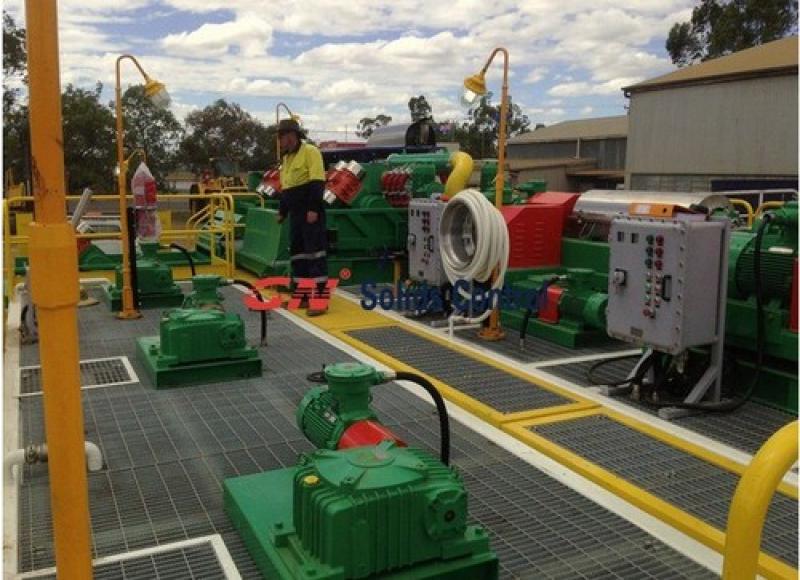

Applications of Explosion proof cable

In some job site condition, such as mining industry, oil and gas drilling field, or other flammable mixed gas environment, explosion proof cable is widely used. It can be used for the contacting of motors, control panels or the explosion proof control system. All these environments are with flammable and explosive gases. If the common cable be used, even a slight friction generated between the plug and the socket, or even subtle spark will be risk. So we have to use explosion-proof cable tray. It is professional and more reliable.

Features of Explosion proof cable

The same with normal cable, explosion proof cable has leakage protection. There is a small built-in leakage switch for explosion-proof cable. In case of leakage accident, the leakage protection switch will power off in 0.03 seconds. At the same time, in order to avoid sparks and electrostatic etc… to cause explosion dangerous situation, all of the configuration including  socket, plug, handle are aluminum, and after spray treatment; plug housing and rotary table adopts aluminum alloy, which is durable, safe and reliable.

Application scope of Explosion proof cable

1) Zone 0, Zone 1, Zone 2 Hazardous area

2) IIA, IIB, IIC class of T1 ~ T6 group explosive gas or steam environment;

3) combustible dust environment 20 zone, 21 zone, 22 zone;

4) Indoor, Outdoor (IP54, IP65)

Technical characteristics

1)The turntable and explosion-proof plug housing is made from casting aluminium alloy, surface is sprayed with PU;

2) With build in leakage protection, circuit breaker;

3) With ON OFF indicating on pin points, the grounding contact is longer than its main contact;

4) There are interlocking device on plug and socket. It can plug after power off;

Technical parameters of Explosion proof cable

1) The rated current: 16*2, 32*2

2) The rated voltage: AC220V/380V

3) Explosion-proof grade: Exd II BT4/T5/T6

4) Protection grade: IP54, IP65*

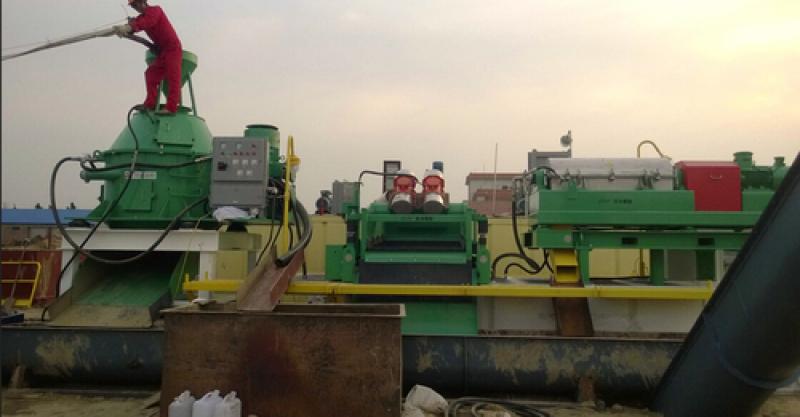

High G drying shaker, also named high G dryer, it is a kind of shale shaker utilize high G force to reduce the water contend in water based drilling cuttings.

Applications of High G drying shaker for water base mud

Unlike solids control shale shaker, high G drying shaker is used to treat drilling cuttings comes from solids control shale shaker, desander or desilter. There is noamally 4-panel shaker screens for high G drying shaker. More shaker screen enable a longer route of mud going through the screen machine.

High G shale shaker cannot be used in solids control system directly. The high G force will destroy the mud contend of the drilling fluids. If it is really need to use high G shale shaker in solids control system, the G force should be reduced.

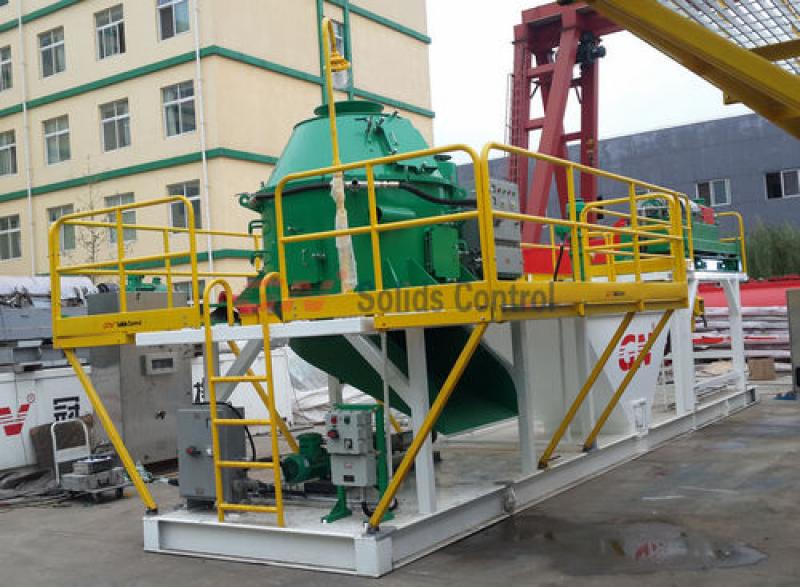

High G drying shaker is used to treat water base mud drilling cuttings, while vertical cuttings dryer used to treat oil base mud drilling cuttings.

Features of GN brand high G drying shaker

GNZS594HGE-LD is a typical model high G drying shaker. It is a 4-panel shaker utilizing composite material shaker screen 1165×585mm. It is common side shaker screen easy to be interchangeable with other brand shakers.

Unlike other brand, GN brand high G drying shaker utilizing stainless steel material for shaker deck for long lifetime.

Synchronous shaker deck angle adjustment device. It is GN patent design. Both the shaker deck angle can be changed equally when you adjust from either side.

Other equipment used together with high G drying shale shaker

When drilling cuttings discharged from solids control shale shaker, desander and desilter, a screw conveyer will be used to transfer the cuttings and feed to high G drying shaker. After high G drying shaker, the clean fluids will be transferred to high speed decanter centrifuge to separate the fine solids inside.

If there are high content fine solids over centrifuge separation scope, dewater unit should be used.

For more information of GN drying shale shaker, decanter centrifuge or dewatering unit, please contact GN group freely, or send mails to vivi@gnsolidcontrol.com

The mud cooler is for the offshore oil and gas business, additionally the energy comes. The mud is cooled within the heat exchanger by suggests that of a glycol/water mixture that in its flip is cooled down within the second heat exchanger by seawater/ water. The glycol/water mixture is current through the system by suggests that of an electrical driven centrifugal circulation pump.

GN Solids Control has manufactured mud cooler equipment.The glycol/water mixture is monitored by AN oil detection device, to observe and avoid any oil leak to the atmosphere. The plate heat exchanger will be equiped with an in depth vary of plate materials: Hastelloy, metallic element and numerous forms of chrome steel.; virtually any material will be processed due to trendy production facilities and well thought-out tool style.

The mud cooler offers the following advantages:

• Extremely suitable for mud cooling for HP/HT drilling
• Extends useful life of drilling equipment
• Is environmental friendly
• Improves working conditions

1. The Drill Cool System   http://www.drillcool.com/

The Drill Cool System options 2 exclusive and distinct technologies: The Geo-Cooler lubricator excitement, and also the Insulated Drill Pipe (IDP). whereas these fluid temperature management devices will be hired severally, the collective use of each technologies will cut back drilling mud/fluid temperatures by quite fifty p.c at the BHA (Bottom Hole Assembly).

2. Flow Process Technologies, Inc. http://www.flowprocess.com/

All Mud Cooling System packages area unit workshop assembled. Tube bundle is removable for correct maintenance and cleansing to satisfy restrictive tips. Then tested before cargo to client location.

Packages shipped with relevant Certification/Documentation, as well as instructions. device Package hot swayback in an exceedingly galvanized end for corrosion protection.21’ 2” L x 8’W x seven.8H (As pictured on top of inside shipping frame)

Approximate Wt. 18,000 lb.

3. Lynsk& Company Pte Ltd  http://www.lynsk.com

The cooling system, featuring Alfa Laval plate-type heat exchanger for cooling the drilling fluid for high pressure/high temperature wells, for increased safety. The unit is very compact and skid mounted, consists of either a single or dual plate heat exchanger depending on process requirements designed in accordance to ASME codes and standards.

4. PUMA land cooler by ALFALAVAL  http://www.alfalaval.com

The PUMA system effectively reduces mud temperature, and is designed for continuous, unmanned operation in harsh environments, providing both maximum reliability as well as ease of service.

5. Stacey Oil Services Ltd. http://www.staceyoil.com/
