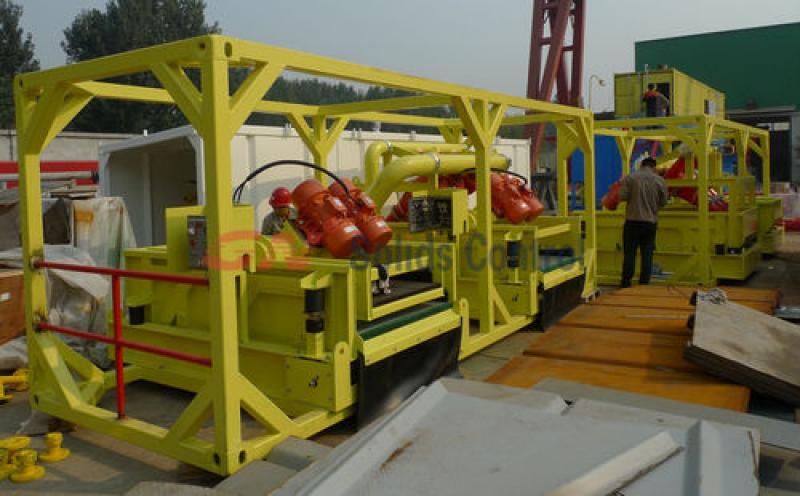

Double deck shale shaker is widely used in CBM drilling (Coal bed methane), piling, micro tunneling and other HDD rig mud system as its big capacity and compact design. The top deck shaker screen can use steel screen (0.1mm, 0.2mm, 1mm etc… per jobsite condition) to separate the coarse size. The bottom deck use normal pretensioned frame screen (API40, 60, 80 etc…)

Parameters of GNZS705 double deck shale shaker

Model:                            GNZS705E

Vibration Mode:              Linear Motion

Vibration Motor:           2×1.94KW, Voltage and Frequency customized

Vibrating Strength:          ≤7.5G (Adjustable)

Treating Capacity:          528GPM(120m³/h)

Deck Adjustment:          -1°~5°

Top Shaker Screen:        3 Panel 2.1m3

Bottom Screen:                3 Panel 2.6m3

Weir Height(Back type buffer box):      895mm

Shaker deck material:           Stainless Steel

Weight:                            2000kg

Dimension (mm):                    2717x2012x1413

Remarks: Treating capacity test from mud:1.2g/cm3density & viscosity 45s & 60 mesh screens

Applications of GNZS705 double deck shale shaker

GNZS705 is a hot sale shaker model made by GN Solids Control company It is a double deck shale shaker with 5 screen panels: 2 screen panels in top deck and 3 screen panel in bottom deck. When the shaker model is used in CBM drilling system, piling system or micron tunneling mud cleaning system, customer choose steel frame screen for long lifetime and big volume. It is a common shaker model for GN compact mud system. It can even be used in GN350~500GPM HDD mud recycling system for small footprint and economic price.

Advantages of GNZS705 double deck shale shaker

1) The shaker model is made from Stainless steel material for better performance on anticorrosive.

2) Vibrating motor from world famous brand: IEC Ex, ATEX and UL Certified (Italy Oil or Martin brand motor, etc…)

3) The whole shaker deck is made from hot treatment. It is more stronger under high G force vibration.

4) Patent tighten rubber sealing for shale shaker deck and screen. It is with long life and easy for replacement.

5) Pretensioned shale shaker screen mounted with wedge for fast screen change.

6)  Flexible options on feeding type: Weir Feed, Top Feed, and Hopper Feed for different applications

7) The shale shaker can be mounted together with desander cone and used as a mud cleaner.

General description of Hydraucyclone desander desitler

Hydraucyclone is a normal parts used for mining industry, for drilling field, for waste water separation, soil depuration. In drilling field. Hydraucyclone can be used as desander desilter per different size. Or combined with shale shaker to work as mud cleaner.

Big size desander cone normally used for mining, piling or CBM drilling.  Hydraucyclone for desander desilter in drilling fieldi usually small size:

1) Hydraucyclone for desander: 12inch, 10inch

2) Hydraucyclone for desilter: 5inch, 4inch

Main parts of Hydraucyclone for desander desitler. Take example of 4 inch desilter cone, it is components of below parts:

1) Shell

2) Cone tube

3) Drop in Apex

4) Orifice nut

When combined for a desilter machine, elbows and clamps, ball valves will be used for connection.

Principle of Hydraucyclone for desander desitler

Hydrocyclone is a cylindrical part of the conical vessel. The upper part of the internal cone section called the liquid cavity. Cone outside is provided with a liquid inlet pipe, and the liquid cavity is communicated to the tangential direction. The top of the container is the overflow port, the bottom is underflow (also called the discharging port). Cyclone size is determined by the maximum diameter of the cone. Its working principle is centrifugal sedimentation. Because of the coarse particles and fine particle size difference exists (or density difference), the centrifugal force, under the centripetal buoyancy, drag force of different sizes, due to the centrifugal sedimentation, pyramidal intermediate creates a low pressure area, forming a column of air, caused by vacuum suction effect, play, most of the fine particles in the cyclone under the actions of upper discharged from the overflow tube, heavy particles thrown to the wall of the barrel, slide along the barrel wall, from bottom outlet.

Materials ofd Hydraucyclone for desander desitler

Polyurethane is also called polyurethane formate, is a kind of polymer between the plastic and the rubber polymer materials. It has not only high strength plastic, and has the high elasticity of rubber. It is a new type of wear resistant material, an excellent comprehensive performance. It has many excellent performance, high wear resistance, in the synthetic material of the first, even more than some alloy steels. The polyurethane as hydrocyclone lining, its service life is four times of high chromium cast iron, four times eight times Ding hydrogen rubber, natural rubber. Polyurethane shore hardness in the range of 17~97 to 85~90, the best wear resistance.

GN Solids Control only focus on top quality products, and offer with reasonable price. Since GN Solids Control company select the best quality material, and use the best machine to manufacture the solids control equipment, our market position is the best quality and reason price for China top market and international market, a little higher price than average price of our China competitors.

For Solids Control System

•  In Australia and New Zeland, GN Solids Control company is the only one China competitor for Local company and USA Europe company. GN Solids Control partnered with a Germany drilling rig manufacturer TT Asia, to take care of our solids control equipment business in Australia.
• Since GN Solids Control have the CE certificate to export to Europe ,we also have the advantage for complete systems to European market.   http://www.gnsolids.com/News/156.html
• Recently We have 2 Solid Control system building for SJ Petroleum export rig, and we have 2 Solids Control Systems for RG petroleum, and we have an order from HH (Honghua) for 4 Sets completed solids control equipment for their rigs.

GN  Vertical Cuttings Dryer

• GN started developing the Vertical Cuttings Dryer from 2011 and have used the first Generation in 2012, we have already sold around 30 Vertical Cuttings Dryers to China and international market. Other Chinese company just start developing Vertical Cuttings Dryer from 2013, 2 years later than our company. From March 2014, we are selling the 2nd Generation Cuttings Dryer, this is the first cuttings dryer in China and applied in WBM and OBM.
• You can check our Videos for Drilling cuttings dryer:
• http://www.gnsolidscontrol.com/video/vertical-cuttings-dryer-water-based-mud-drilling-waste
• http://www.gnsolidscontrol.com/video/drilling-cuttings-vertical-dryer-testing
• Many big oilfield service companies like Halliburton and Baker Huges are discussing with our company to work together for the drilling waste management equipment. GN have good business with big international companies like them.

Inside a solids control system, desander may be the second stage equipment, which removes solids particle size 40-100 nm from drilling liquids. Then your next is desilter getting rid of particle size 16-50nm from drilling liquids. While, cone(also called hydrocyclone) may be the functioning part for desander and desilter. Based on the size cone diameter, cones are called desander cones having a the diameter over 6’’ so that as desilter cones having a diameter under 6’’. Generally, 8’’ and 10’’ cones are generally utilized as desanders 4’’ and 5’’ cones are often utilized as desilters.

You might be interested in the way a cones works. GN Solids America will tell you the answer within the following paragraph.

In normal operation, feed slurry needs tangentially in to the interior from the cone inside a high-speed, leading to whirlpool effects within the cone. The swirling motion from the slurry drives the bigger and denser contaminants outward from the cone wall for the lower discharge port, as the more compact, lighter contaminants move towards the middle of the cone and venture out with the upper discharge port. The separation of solids from drilling liquids is completed.

GN’s desander and desilter cones are constructed with memory material, and switches into a detachable set up to become placed on a shale shaker.

HDD means horizontal directional drilling. Many people are wondering when HDD machine used? You see, you want to put pileline undergoud pipeline, but there is a huge river in the area. How did you do, to full up the river or change direct to pass it? No, it is huge work. With HDD machine, you can put pipes in a depth first, and then cross pipes under the river. Another condition like that, it requests to put some underground pipes for cable, for water, for natural gas, etc… in city area, but it is not possible to dig up the ground, there are buildings and constructed road on it. With HDD machine, things will be very easy.

World HDD maching / rig supplier

1) Ditch Witch

2) Vermeer

3) SANY

80T HDD machine is a most common side drilling rig. The high pressure is between 1000 to 2000 liters. 350~500GPM mud system is used for this rig size.

For different customer and different rules for discharge, there are different standard mud system.

If your 80T machine is for HDD, we recommend you GN350~500 GPM mud system.

Simplify proposal as below:

1) GNZJ705E-6N mud cleaner for 2 phase separation. 1 each

It is a double deck shale shaker, with 6 each 4inch desilter cone above the shaker.

2) Centrifugal pump: 5’’*4’’, 22kw, 2 each

3) Mud gun: 1 each

4) Mud tank dimention: 6058x2250x1600 (the same dimension with 20ft container)

5) Slurry pump feeding for shale shaker, 11kw, 1 each

6) Light system and electrical control system.

We offer TURN-KEY solution. You only need to plug-in with our power and then press START of the system.

China Petroleum Pipeline Bureau (CPP) is the biggest HDD contract in China. It is a government controlled company. CPP have drilling actives worldwide, in China and outside China.
