To strengthen the awareness of team unity and cooperation, promote the mutual communication and exchanges between the members, enhance the collective centripetal force, May 21, GN solids control in huairou water great wall development base organized an outdoor development training, activities, participants receiving good memory!
On May 21, at around 9 in the morning, the players to reach the huairou water great wall scenic area development training site. In early summer, the great water wall scenic beautiful, green, people enjoy the beauty of nature’s quietly at the same time, expand activities quietly.
Activities, training teacher make us divided into two groups, and they selected the captain, the team name, choose the team song, wanted to modelling, construction began on a team.
This training activity, we has carried on the back “trust”, “grid” of collective activity, everybody behaved in an activity, make the competition becomes more intense and exciting
“Trust fall back” this project is very meaningful. In back of the stage, standing 1.5 meters tall on the back, betray oneself completely, due to the situation of can’t see behind the injured anxiety, at this time they can adjust their mentality, believe that the power of companion, resolute, brave to fall back, is the key to success. Lie down without worry, that not just need courage, but along with the full trust of the audience members. Dumping of the moment, the moment, the brain blank, only trust, had no choice.

“Through the grid” the project, each team relying on the power of the team in the past, from the grid clothes, any part of the body can’t get an electric shock, otherwise the game start again. Any one player in the game’s mistake, is likely to be “electric shock”, the team’s results will be disqualified. A person’s success does not stand for the whole team’s success, only work together, to win the final victory!
The final summary to share, many people said, this activity gave us a profound revelation – “there is no perfect individual, only perfect team”, also deeply realized depends on each member’s efforts, to achieve the goal of the team solidarity more from the team members, only mutual trust and cooperation between players, to reach a team goal!

GN Solids Control is a worldwide famous
brand of mud solids control system, drilling waste management system, as well
as replacement shaker screens.

This week, GN Solids Control China factory
finished a mud system for a domestic project. It is a 4-tank mud system for
750hp drilling rigs.

1) The 4 mud tanks of the 750hp rig mud
system are the same size with 40ft container. And the tanks are equipped with
3-runner oilfield skid. The oilfield skid is with 250mm at each tank ends. It makes
the tanks easy to movement at jobsites.

2) GN Solids Control equips 2 sets Solids control
linear motion shale shaker separator for the system. The system is equipped
with 2 each 3-panel shale shaker, model GNZS703E. It is the most popular shaker
models for oil and gas mud system from GN Solids Control.

3) In this system, the clients choose 1
desander separator and a desiler separator.

The desander model is GNZJ752-2S. It is
equipped with 2 ea 10’’ desander cone. Each 10’’ desander cone is with max. 120
m3/h (528GPM) handling capacity.

The desilter cone model is GNZJ752-12N. It
is equipped with 12 ea 4’’ desilter cone. Each 4’’ desilter cone is with max.
20 m3/h (88GPM) handling capacity. For totally 12 ea 4’’ desilter cone, the
desilter handling capacity can reach to 240m3/h (1056GPM).

4) The 4-tank mud system is equipped with a
middle speed decanter centrifuge to recovery the barite and reduces the mud
weight. The centrifuge model is GNLW452. It is a most cost-effective big bowl
decanter centrifuge widely used in solids control mud systems for oil rigs.

5) And there are many mud agitators, mud
guns, lights, and pumps for the system.

6)
This clients choose a separate jet mud mixing system. The jet mud mixing hopper
and mixing pump as well as control panel are all mounted in a separate oil field
design skid. It is easy to move it and work to different mud tank systems.

As
more and more authorities issued more and more strict rules on the envornment
protection, drilling
waste management equipment gets more and more necessary at drilling rig
site, especially in oil and gas drilling rig website. As the drilling fluids
material various kind of chemicals, in case discharged directly. it will have
really bad pollution to the atmosphere.

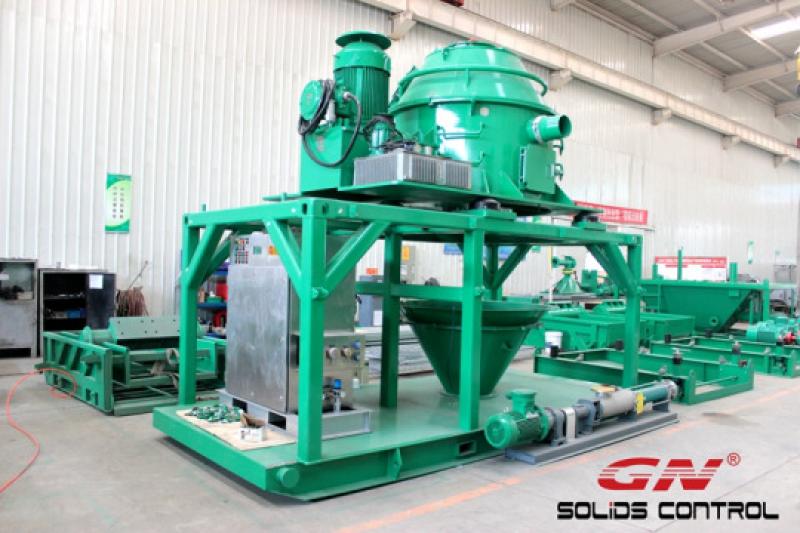

GN Solids Control most recent design drilling waste management equipment drill
cuttings renforcement unit are welcomed in jobsite.
1) The drill down cuttings solidification unit may be used to treat drilling
cuttings released from the high G drying out shaker. When the cuttings through
solids control shale
shaker, desander,
desilter treated by higher G drying shaker, the actual fluids will go to drying
out shaker catch tank for more treatment, the solids through high G drying
shaker can be treated by drill cuttings solidification unit.

2) The actual drill cuttings solidification device can be used to treat
drilling cuttings discharged from decanter centrifuge. The liquid phase is drilling
to be covered by further treatment, such as dewatering unit. while the solids
phase can be treated by drill down cuttings solidification unit.

3) The solids discharged through vertical
cuttings dryer could be further treated by drill down cuttings
solidification unit. It may reduce the water content within the waste.
Many clients may question, what is the water content following the drillings
treated by drill down cuttings solidification unit? It can be hard to see what
the water content material is. As it is flexiable. It really is controlled by
the operators. If you want to the actual cuttings dryer, you include more
chemicals, if you do not require very dryer, you can slow up the quality of
chemical.
Top features of GN latest design drill down cuttings solidification unit
1) Small footprint with high effectiveness of GN latest style drill cuttings
solidification device.
2) Automatically control associated with GN latest design drill down cuttings
solidification unit.
3) All the screw conveyers associated with GN latest design drill down cuttings
solidification unit tend to be variable speed control.

The drilling mud decanter centrifuge driven
by VFD will give many benefits to the clients. The adjustable bowl speed and differential
speed allows the operators to set the right G force and solids pushing speed
according to the drilling mud conditions.

To design the VFD Control Panel, the
contractor needs the power supply specifications. Normally it is 460V/60HZ for
USA standard or 380V/50HZ for Europe and China standard. Than the pulley size
of the motor and bowl side will decide the bowl driving speed at different
frequency. After confirming the bowl speed formula, the contractor needs the
formula for calculation of the differential speed. For GN Decanter centrifuge,
the Sun-Wheel gear box ration is 57:1. So the differential speed will be the
bowl speed minus the gearbox input speed and divided by 57.

For the VFD Control panel, there is
different explosion proof standard. In China, it is CN Explosion proof which is
close to IEC Ex standard. In Europe, it is ATEX Explosion proof. And in North
America, the explosion proof standard is UL for USA, and CSA for Canada.

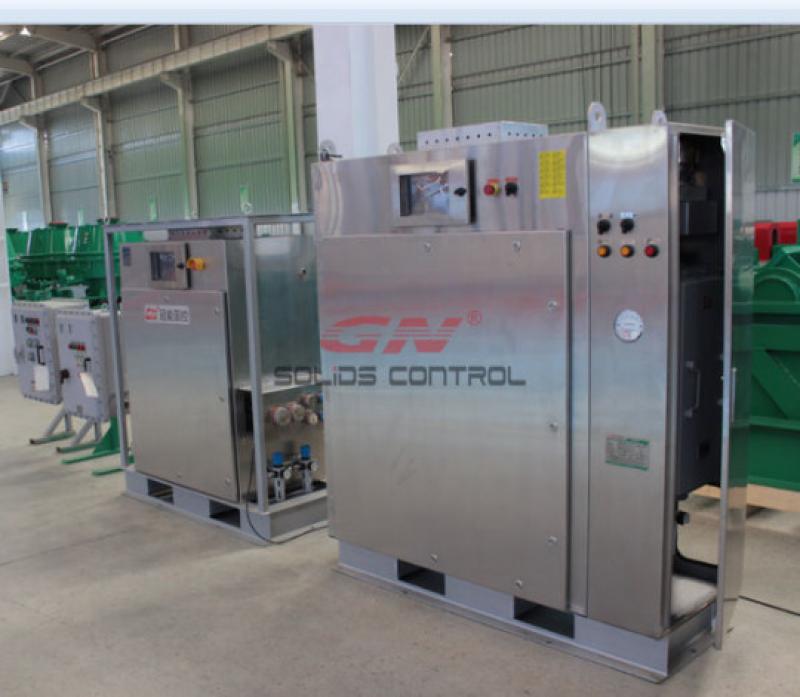

GN Pressurized VFD Decanter Centrifuge control
panel is specially design for Zone 1 or Zone 2 standard with ABB VFD and
stainless steel cabinet. The PLC smart control allows the user to operate the
drilling mud decanter centrifuge by HMI screen.

GN VFD decanter centrifuge has been
exported to over 30 countries and regions, GN Solids Control VFD decanter
centrifuge is available in different sizes including: GNLW223C-VFD (9inch)
bowl, GNLW363C-VFD(14inch bowl), GNLW453C-VFD (18inch bowl), and the big bowl
big volume centrifuge with 22inch bowl and model is GNLW553C-VFD.

To support the worldwide operators, GN
Solid Control keep expanding our branches, now , GN service and support are
available from Beijing, China, Houston, USA, and Russia. Some other areas are
covered by GN local partners who are the professional solids control service
companies.

With more and more cooperation between
China government and Russia Government, there also more and more cooperation
between China companies and Russia companies. As China leading manufactures in
China, GN Solids Control Ltd have more and more development in Russia.

Now the world economic environment is not
good, industry companies becomes more and more difficult under this conditions.
Many companies, even many big and famous companies and cannot survive at the
bad condition. But GN Solids Control can keep improving and developing. With
the advanced design equipment, reliable and fast services, and international
services net, GN Solids Control get more and more marketing share from the
international market.

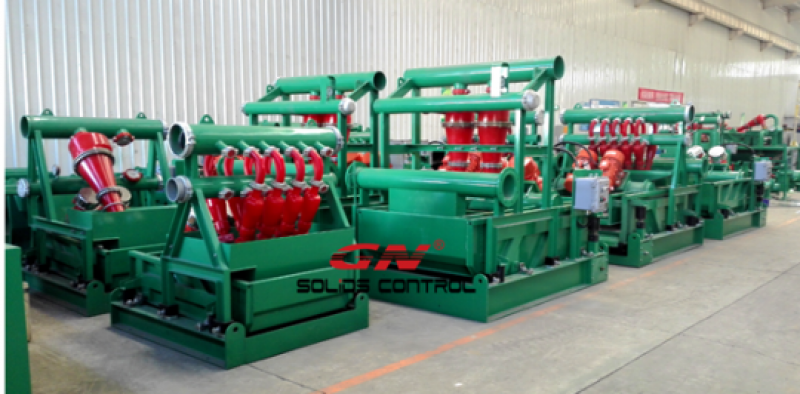

Recently, 4 sets solids control shale
shaker as well as 4 sets solids control mud cleaner dispatched to the port for
Russia clients.

It is not the first time the clients buy
from GN Solids Control Company. But GN Solids Control is the first suppliers
for this client from China. Before buy the solids control equipment from China,
the clients only buy big equipment from America and European.

Why the client finally decided to buy from
GN Solids Control

1) GN Solids Control is China leading
manufacturer for mud solids control and drilling waste treatment system

2) GN Solids Control is China leading
company for drilling waste treatment system. GN engineering group have good
expericent on the drilling waste management field

3) GN Solids Control prompt response to
clients. The client oriented services.

4) Advanced and user friendly design on the
solids control and drilling waste treatment systems.

5) Cost-effective price. GN only make top
quality products and offered with reasonable price. Clients will follow GN after the first
deal, they will give repeat orders and recommend new customers to GN Solids
Control company.

6) One top service and turn key solution:
from solids control linermotion shale shaker, mud cleaner, desander, desilter,
mud mixing system, variable pumps, mud agitators, mud guns, mud tanks,
electrical control systems, decanter centrifuge, vertical cuttings dryer…
