GN Solids America’s centrifuge pump installation

GNSB centrifuge pump manufactured by GN Solids
America LLC is the mud feeding machinery for solid control equipment in
drilling mud system.

Pump installation

Pump installation location should be near to
the source and purposely to shorten the length of the suction period and
prevent the suction loss. Pump installed base should be leveled, firm and secured
in order to avoid vibration during operation.

 Coupling installation

The pump and motor for a long use life depends
on the elastic coupling. Available steel straightedge by coupling the up and
down or so, with the view straightedge and coupling the garden all parties
should contact closely. Namely coupling outside garden parties should be in a
straight line to make sure that the motor shaft and pump shaft coaxial angle.

 Entrance pipeline installation

Entrance piping shall be in accordance with
the pump inlet matching.

Suction piping not allowed to install throttle
valve, but can be installed normally open valve to reduce fluid flow disorder. To
avoid suction people line produced in steam bubble, the pumping source and
between pump from high to low gradually transition. If users need to pump in
use suction conditions, use vacuum pump or bottom valve pilot.

Pump at the entrance line must be flat; the
length of at least two times the diameter of the inlet line.

Exit line

In order to facilitate pump maintenance, the exit
pipeline should be installed normally with open valve.

All line (including population line) must have
their own support.

When work condition is unknown or unstable,
export in pipeline must be installed throttle valve in order to ensure the pump
in the design point operation.

When the pump discharge and pressure equipment
connected, the throttle valve and pump must install a check valve to prevent
the liquid reflux, otherwise, the return fluid can lead to damage

GN solids control produced mud
handling equipments and mud
tanks
are mainly used for cleaning and recycling the used driling fluids
from the well bore.

If you need mud
handling equipments with mud tanks and solids control system, pls contact with
GN solids control in Beijing, China or GN solids America in Houston, USA, we
have the main mud handling equipments in stock for immediate shipment.

GN500 GPM mud recycling system for Water well drilling system

GN 500 GPM mud recycling system is one of
the most hot sale system model for horizontal drilling directional drilling (HDD),
water well drilling, CBM drilling, as well as for some small workover rigs.

Water well drilling is very important; it
is not only used for human being life and industry purpose. For oil and gas
drilling field, it is also very important. Before start the operation of oil
drilling, the jobsite need to drill water well. As all the drilling activities
need to use water. They have to ensure water supplier before start drilling oil
and gas well.

One set trailer mounted GN 500 GPM mud cleaning system arrive client job site and highly commended by the clients.
The GN 500 GPM mud recycling system is designed for 1000m deep water well
drilling. It can also suit for 350hp drilling rigs and ZJ20, ZJ30 drilling
rigs.

It is a complete mud system including mud
treatment system and mud mxing system, as well as electric control system. GN
reserves a spare connect on the inlet and outlet pipe of the mixing pump. The
system can be used to mix mud in outside tanks, and it can transfer qualified
mud to outside tanks. Clients can connect the outside storage tank directly.

The GN 500 GPM mud system is a customized
system per clients’ request. The system is including following equipment.

1) Solids Control shale shaker, model GNZS703E.
It is a linear motion shale shaker with 3-panel. Its capacity is 500GPM.

2) Mud cleaner GNZJ703E-D8N.It is a
combination of shale shaker and desilter cleaner.

3) Mud mixing system

4) Mud tank and accessories.

Besides this proposal, GN Solids Control
offers different standard mud system to cater for different jobsite condition.
GN have below standard design for 500gpm mud system:

1) The economic standard GNMS-500B mud
recycling system

2) The normal standard GNMS-500G mud
system.

3) The high standard GNMS-500GL mud system.
Compare with above proposal, this model is equipped with more treatment process
and with a bigger usable tank capacity.

GN company keeps for standard mud system,
welcome you contact GN for inquire.

Cuttings Box Used on Drilling Site

Cuttings
Box Used on Drilling Site

Cuttings box is also called cuttings collection box
that is widely used on drilling site as a temporary vessel to collect and store
the drilling waste cuttings. Due to the purpose of the cuttings box, it is
designed compact and easy for transportation. Once the cuttings box is full, it
could be replaced by an empty one.

The cuttings box is always used on the drilling
site where the mud pit is not available. In the solids control system, the cuttings boxes are always located under the solids discharge
chute of the shale shaker to collect the cuttings out of the primary shaker.
Same situation as the cuttings box located with the de-sander, de-silter and decanter centrifuge.

Most of the cuttings boxes are simple without a
cover. And if you want move it, you need be careful as the cuttings still with
large content liquid will splash out. With consideration on this, GN Solids
Control designed a type waste cuttings box with a fully sealed cover on it.
When collecting the cutting, the cover is open; when transportation, the cover
is locked easily to prevent the splashing of the cuttings. It is an ideal
container to meet the requirements of HSE regulations for hazardous waste
movement. Not only for waste cuttings, also for some other hazardous waste
discharges. At the bottom frame of GN’s cuttings box, the forklift loading
grooves are designed for easy moving and replacing.

The advantage to use cutting box is no need dig a
mud pit on the ground, then the pitless mud recycling system as well as waste cuttings management system are realized. Fully covered box could be transported safely and easily
for waste management plant where the waste would be further treated. The disadvantage
is you may need many cuttings box stock on drilling site so that you could
replace a full one immediately. The cutting boxes everywhere would occupy much
area of the site.

Welcome to See GN High Speed Centrifuge and  Shale Shaker in Moscow

The
ondrilling lower price of unsavory oil doesn’t hold the stage of oil and gas
market, because the crude oil and gas is always needed by the modern-day world,
the oil and gas associated companies still have to work around the oil and gas
exploring and drilling, just try to reach this at a lower cost. That’s why
inside the coming Oil Show to become held in April in The ussr, Chinese brands
become more plus much more popular.

But the oil firms don’t want to sacrifice the standard although on a much lower
cost, and accordingly, the most least expensive solutions become their precious
choice. GN Solids Control, who
produces and provides the particular internationally best quality of products
at a reasonable made in China value, becomes the best choice of the drilling
companies and oil provider companies.
This time, for the Moscow oil show 2016 that is scheduled in April, GN will
bring the most updated GNLW363CG Decanter
centrifuge
and GNZS594E shale shaker to the necessary oil show, and also
its sturdy and effective screens.
GN has attended Moscow necessary oil show for several years. Each year, GN
brought the newest designed goods to the clients, and GN sales team supported
lots of Russian language companies. GN produces are usually certified by
Russian TP & TC, welcomed by simply Russian market.
Main components of GNLW363CG:
Bowl height 14 inch.
Bowl span: 50 inch.
Max velocity: 3900RPM
Typical speed: 3200RPM.
Typical G force 2062

Main factors of GNZS594E drying
shaker
:
Linear motional.
616 RPM treating capability.
Vibration G force as much as 8. 0.
Screen sizing 1165*585MM
Screen area: installment payments on your 73 sqm

If you have prefer to go to Moscow oil present, pls contact us and verify a
time for meeting, And also GN has office within Moscow for your easy speak to
at any time.

3 sets 500GPM mud recycling system for CPP

3 sets GN fast removable mud recycling system for HDD rigs will be dispatched to the client this week. It is customized system for CPP rigs. CPP engineering team visit GN factory and check the system before dispatch and very satisfied. They are happy with the system quality and thanks very much for the continue technical supporting of GN Solids Control for the years. Till now, they have over 35 sets compact mud recycling systems from GN Solids Control. Most of the systems are for 500GPM capacity.

The 3 new systems are customized with 500gpm capacity also, but can up to as 1000GPM mud system capacity when needed.

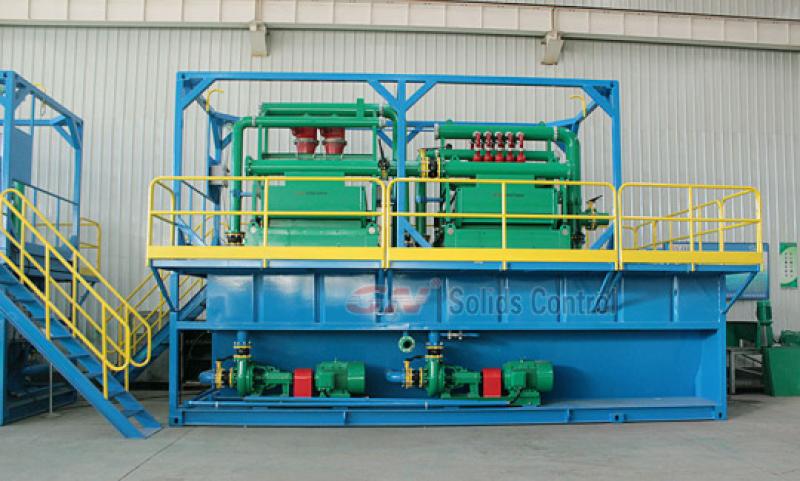

The 500gpm ~ 1000 GPM mud recycling systems are composed of below equipment:
1) Mud tank 1 ea. The size of the tank is the same with 20ft standard container, and equipped with ISO blocks. Walkways and handrails are all foldable type design for fast movement. During inland shipment, the users no need to remove the walkways and handrails, they only need to take off the pin shaft and supporting beam of walkway, and fold up the walkway and handrails to the tank side wall.
2) Mud cleaner desander (model GNZS706E-2S) with double deck shale shaker. It is the combination of a double deck shale shaker and 2 each 10’’ desander cones. The bottom shaker deck can be used as solids control shale shaker for preseparation.
3) Mud desilter cleaner (model GNZS706E-8N) with a double deck shale shaker underneath. The bottom deck of the shaker will be used as solids control shale shaker.
The 1 ea desander mud cleaner and 1 ea desilter mud cleaner are mounted in a lifting frame, they can be moved as a compete part during shipment when needed.
4) Feeding pump for desander and desilter cones are mounted in the slope of the mud tank for a compact design.
For other sizes of GN mud recycling system for HDD rigs, please you visit GN website or contact GN company for details.
